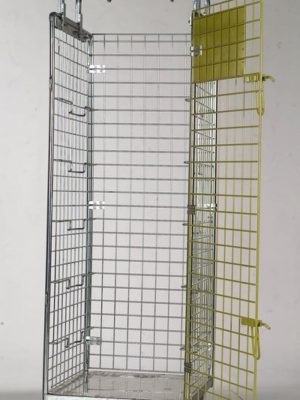

Roll container lanyards
H1910 – Ø 25mm

Dimensions:
External dimensions L x W x H in mm: 770 x 1075 x 1910
Interior dimensions L x W x H in mm: 700 x 800 x 1730
Technical specifications:
Maximum load: 600 kg
3 sides + 2 doors + 1 roof (+ 1 document holder)
Tube: Ø 25 mm, thickness 2.5mm
Mesh grid 60 x 160 x 6 mm
11 levels including 10 removable shelves
Spacing between each level: 135 mm
Base
Rectangular tube frame 35 x 20, thickness 2.5 mm
With reinforcement in 35 x 20 section tube, thickness 1.5 mm
4 wheels Ø 160 mm
2 fixed wheels
Ø 160 mm with 40 mm tyres
2 swivel wheels
Ø 160 mm
Welded one-piece structure
Spot welded circular tube grid
Finish: electro zinc plated
