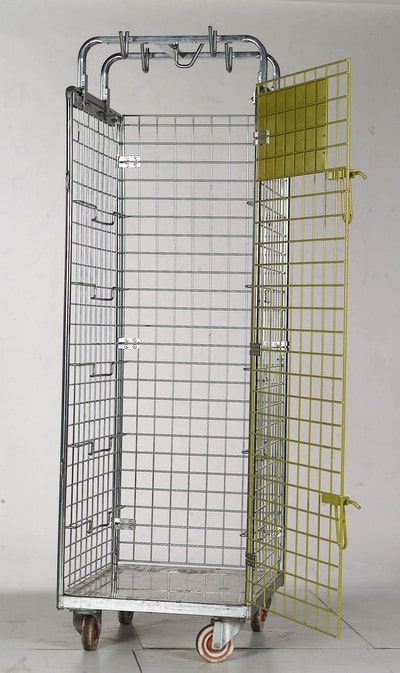

Roll container with vertical lanyards
H2065 – Ø 25mm

Dimensions:
External dimensions L x W x H in mm: 685 x 770 x 2065
Interior dimensions L x W x H in mm: 550 x 690 x 1780
Technical specifications:
Maximum load: 600 kg
3 Sides + 1 door + 1 roof
Tube: Ø 25 mm
thickness 2.5 mm
Grid
mesh 60 x 60 x 6 mm
Grid
and welds slightly recessed towards the inside of the cart
by
to the perimeter tube of the panel
5 hooks
Wire Ø 10 mm thick
Base
Frame
35 x 20 rectangular tube, thickness 2.5 mm
with
reinforcement in 35 x 20 section tube, thickness 1.5 mm
Gem Rolls wheels
2
fixed wheels Ø 125 mm with 40 mm tyres
2
swivel wheels Ø 125 mm, clevis pins on double
crown
with hub caps
One-piece welded structure
Spot welded circular tube grid
Finish: Electro galvanised
Optional:
Plate
PVC bottom plate, colour of choice
Stainless steel plate
