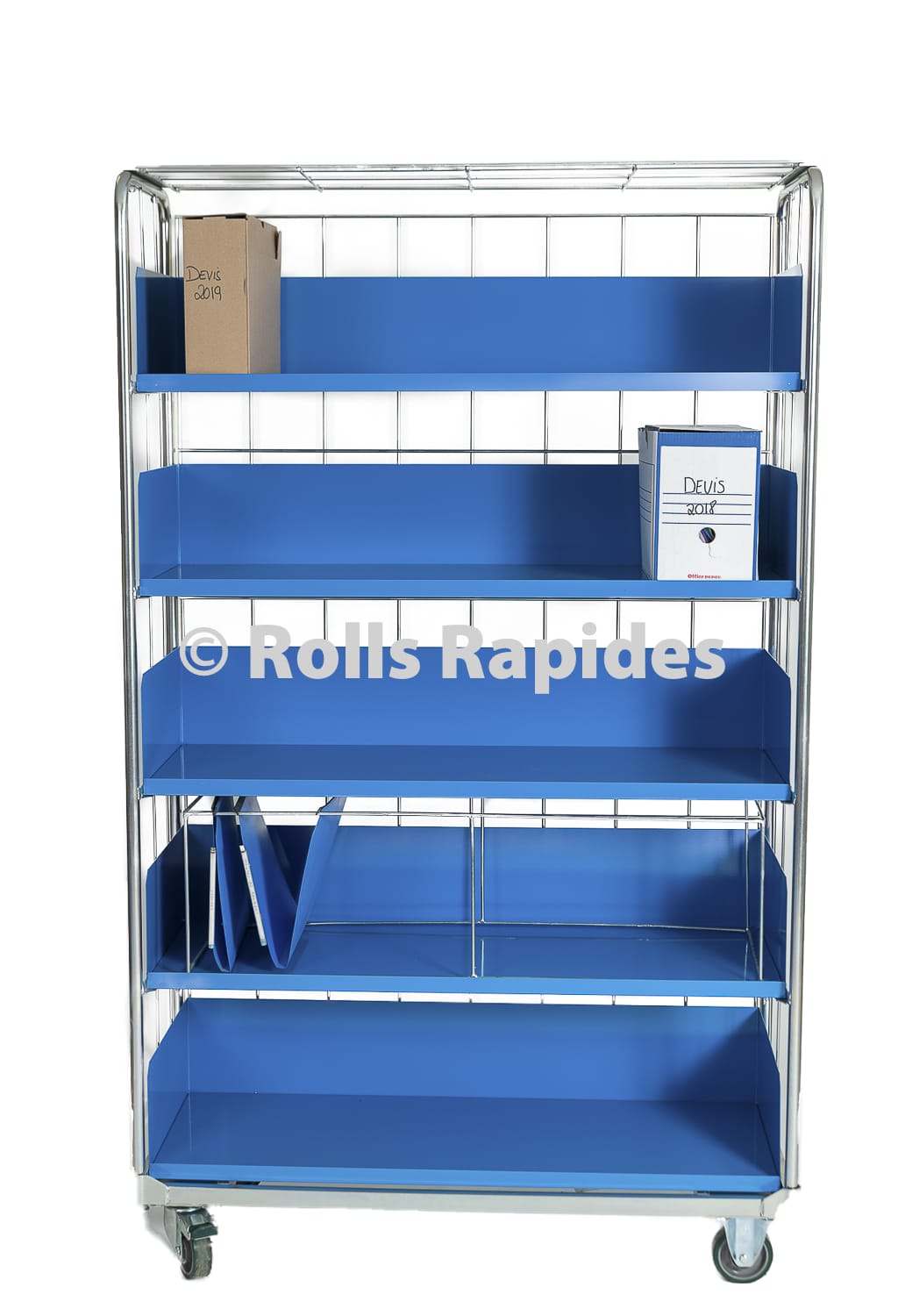

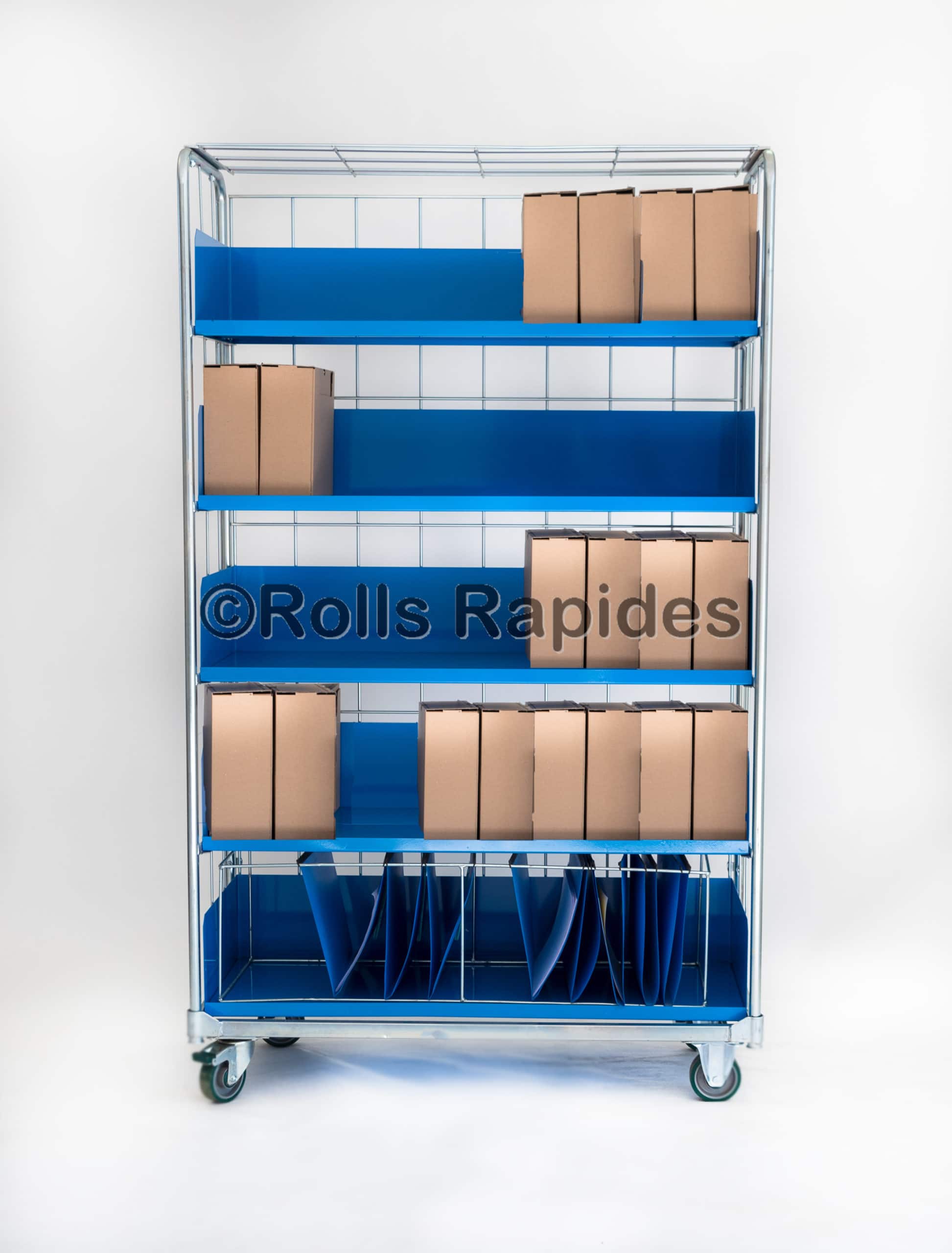

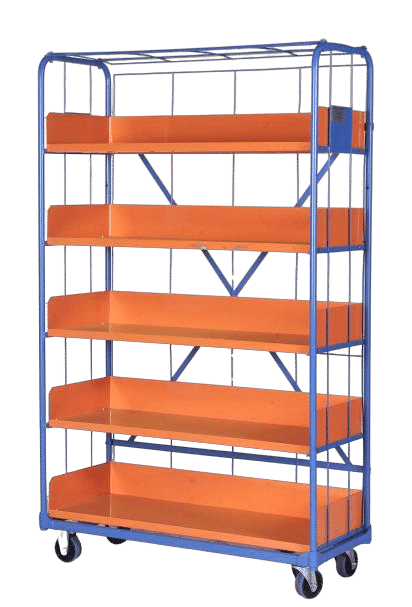

Mobile Shelf Trolley 5 trays
H1810 – Ø 22mm

Dimensions:
External dimensions L x W x H in mm: 1100 x 450 x 1810
Inner dimensions L x W x H in mm: 1040 x 390 x 1640
Technical specifications:
Maximum load: 450 kg
2 sides
Tube :
Ø 22 mm, thickness 1.5 mm
Mesh screen 140 x 320 x 5 mm
1 bottom
Mesh screen 120 x 120 x 7 mm
1 roof
3 flat bars 20 x 5 mm
1 wire frame
Ø 5 mm
Base
Rectangular tube frame 35 x 20, thickness 1.5 mm
With reinforcement in 35 x 20 section tube, thickness 1.5 mm
5 sheet metal trays dimensions L x W in mm: 1040 x 390
Passage between each tray 290 mm
Finish: zinc plated + paint
4 wheels Ø 100 mm with roller bearings, green synthetic rubber tyres
of which 2 fixed and 2 swivel with brake, clevises with
on double ball bearings with medium cover
Welded one-piece structure
Welded circular tube grid reinforced by spot welding
Finish: electro-galvanised
